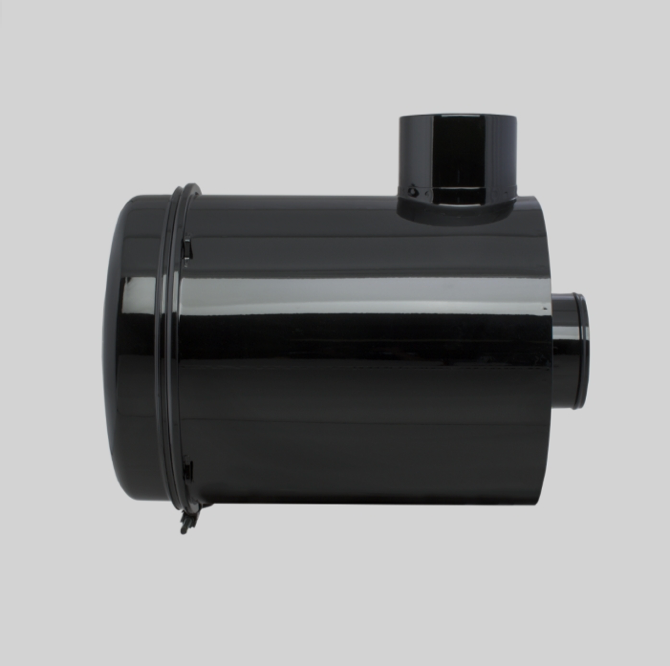

Donaldson Filtration G160104.AIR CLEANER, FWG CYCLOPAC

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G160104

AIR CLEANER, FWG CYCLOPAC

24.18 inch (614.17 mm)

6.00 inch (152.4 mm)

16.00 inch (406.4 mm)

6.00 inch (152.4 mm)

17.59 inch (446.79 mm)

766 cfm (21.7 m³/min)

886 cfm (25.1 m³/min)

992 cfm (28.1 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FWG

Brand Cyclopac™

Price Type H

Packaged Dimensions

Packaged Length 2.59 inch (6.579 cm)

Packaged Width 21.50 inch (54.610 cm)

Packaged Height 23.00 inch (58.420 cm)

Packaged Weight 50.00 lb (22.700 kg)

Packaged Volume 0.74 ft3 (0.021 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-13

HTS Code 8421310000

UPC Code 742330002278
