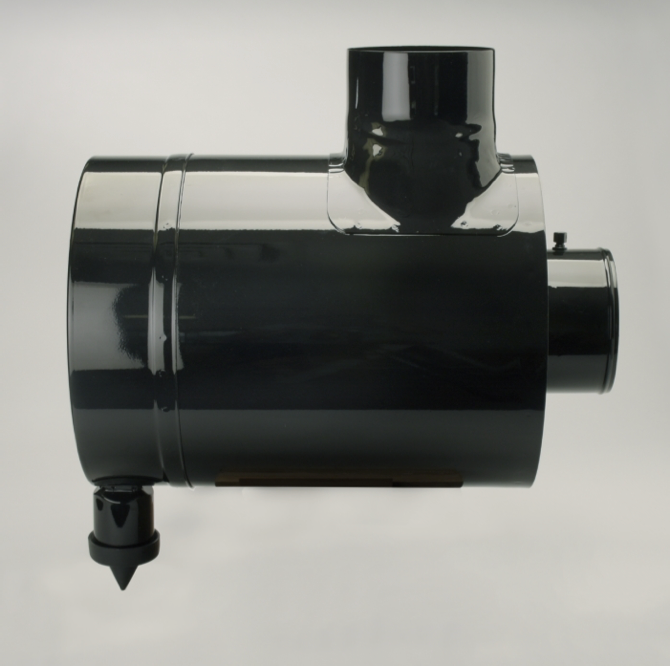

Donaldson Filtration G160376.AIR CLEANER, FVG CYCLOFLOW

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G160376

AIR CLEANER, FVG CYCLOFLOW

24.75 inch (628.65 mm)

7.00 inch (177.8 mm)

16.00 inch (406.4 mm)

7.00 inch (177.8 mm)

20.87 inch (530.1 mm)

731 cfm (20.7 m³/min)

879 cfm (24.9 m³/min)

999 cfm (28.3 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FVG

Brand Cycloflow™

Price Type H

Packaged Dimensions

Packaged Length 29.50 inch (74.930 cm)

Packaged Width 21.25 inch (53.975 cm)

Packaged Height 27.50 inch (69.850 cm)

Packaged Weight 55.00 lb (24.970 kg)

Packaged Volume 9.98 ft3 (0.279 m3)

Pieces Per Pallet 2

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002346
