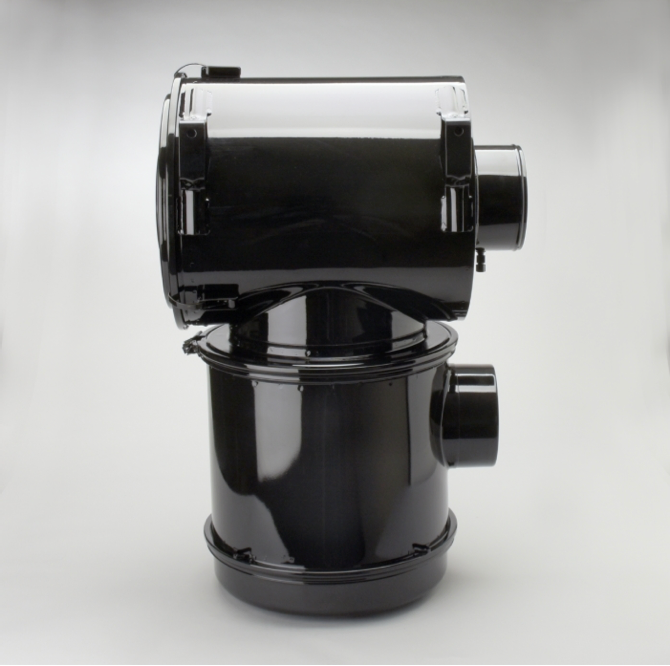

Donaldson Filtration G160445.AIR CLEANER, STG DONACLONE TUBULAR

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Width Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G160445

AIR CLEANER, STG DONACLONE

TUBULAR

26.31 inch (668.3 mm)

7.00 inch (177.8 mm)

16.00 inch (406.4 mm)

7.00 inch (177.8 mm)

20.12 inch (511 mm)

13.60 inch (345.44 mm)

915 cfm (25.9 m³/min)

1063 cfm (30.1 m³/min)

1201 cfm (34 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Tubular

Family STG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 41.75 inch (106.045 cm)

Packaged Width 21.25 inch (53.975 cm)

Packaged Height 26.75 inch (67.945 cm)

Packaged Weight 93.50 lb (42.449 kg)

Packaged Volume 13.73 ft3 (0.385 m3)

Pieces Per Pallet 2

Other Information

Country of Origin United States

NMFC Code 069100-03

HTS Code 8421310000

UPC Code 742330002360

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
