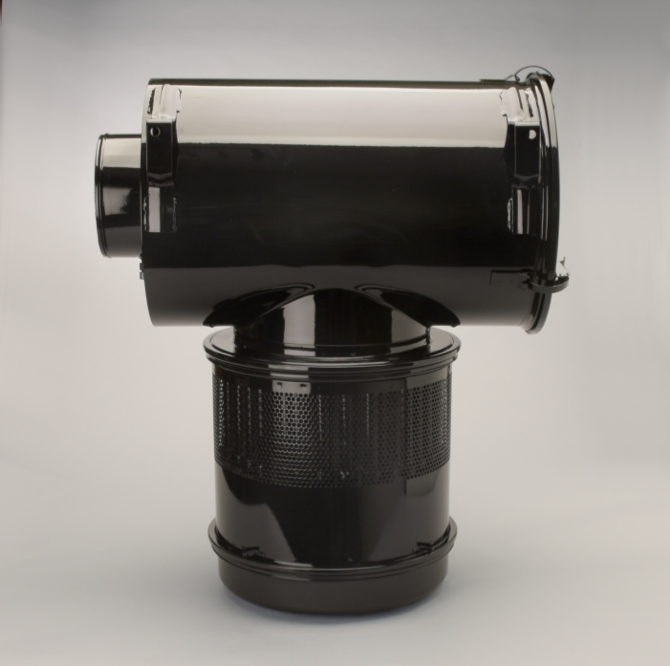

Donaldson Filtration G161006.AIR CLEANER, STG DONACLONE PERIPHERAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Width Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G161006

AIR CLEANER, STG DONACLONE

PERIPHERAL

29.56 inch (750.82 mm)

17.28 inch (439 mm)

16.00 inch (406.4 mm)

8.00 inch (203.2 mm)

17.99 inch (457 mm)

13.60 inch (345.44 mm)

1360 cfm (38.5 m³/min)

1568 cfm (44.4 m³/min)

1759 cfm (49.8 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Peripheral

Family STG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 36.75 inch (93.345 cm)

Packaged Width 31.50 inch (80.010 cm)

Packaged Height 20.25 inch (51.435 cm)

Packaged Weight 99.25 lb (45.060 kg)

Packaged Volume 13.57 ft3 (0.380 m3)

Pieces Per Pallet 2

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002391

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
