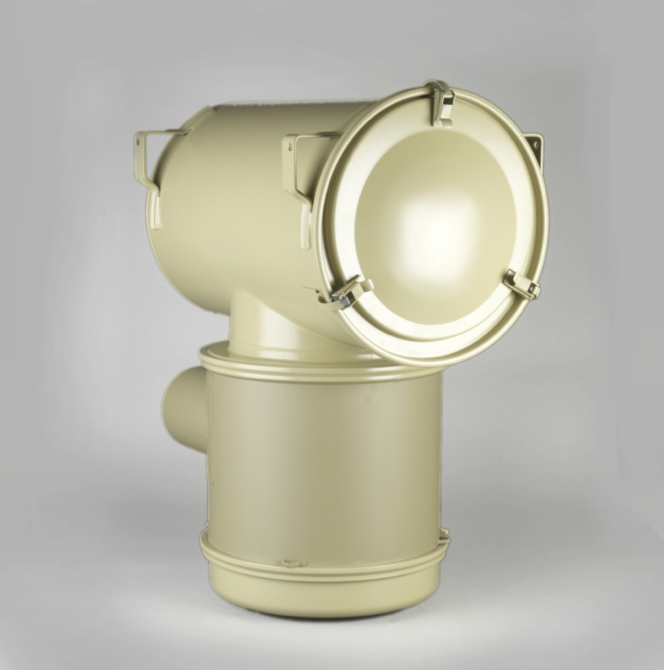

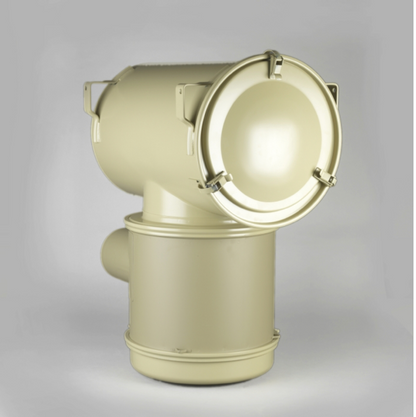

Donaldson Filtration G161020.AIR CLEANER, STG DONACLONE TUBULAR

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Width Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Product Specifications

G161020

AIR CLEANER, STG DONACLONE

TUBULAR

29.56 inch (750.824 mm)

5.98 inch (152 mm)

15.98 inch (406 mm)

8.00 inch (203.2 mm)

17.99 inch (457 mm)

24.00 inch (609.7 mm)

1413 cfm (40 m³/min)

1307 cfm (37 m³/min)

1466 cfm (41.5 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)Restriction HR 10 inch H2O (24.91 mbar)

Style Tubular

Family STG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 37.00 inch (93.980 cm)

Packaged Width 31.75 inch (80.645 cm)

Packaged Height 18.25 inch (46.355 cm)

Packaged Weight 100.00 lb (45.400 kg)

Packaged Volume 12.41 ft3 (0.347 m3)

Pieces Per Pallet 2

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330002407
