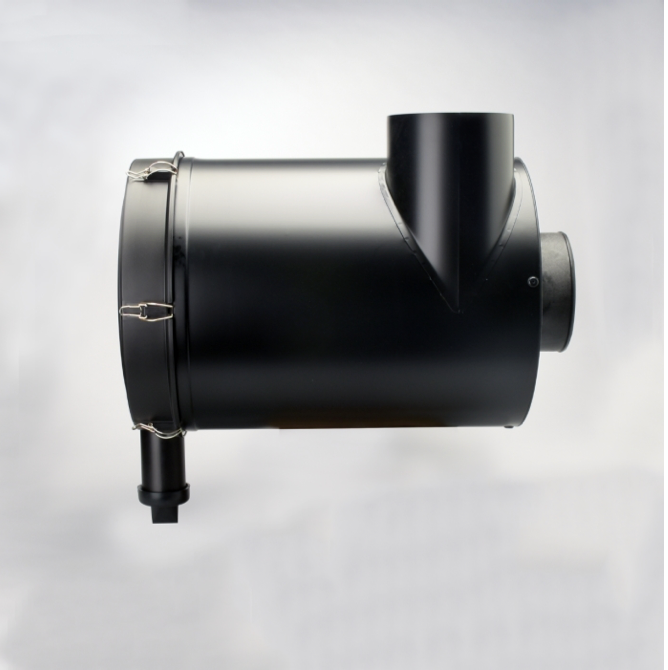

Donaldson Filtration G180031.AIR CLEANER, FRG RADIALSEAL

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G180031

AIR CLEANER, FRG RADIALSEAL

28.94 inch (735 mm)

7.99 inch (203 mm)

17.99 inch (457 mm)

7.99 inch (203 mm)

22.17 inch (563 mm)

1042 cfm (29.5 m³/min)

1229 cfm (34.8 m³/min)

1391 cfm (39.4 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Style Radialseal

Family FRG

Brand RadialSeal™

Price Type H

Packaged Dimensions

Packaged Length 30.00 inch (76.200 cm)

Packaged Width 21.25 inch (53.975 cm)

Packaged Height 31.94 inch (81.121 cm)

Packaged Weight 49.97 lb (22.686 kg)

Packaged Volume 11.78 ft3 (0.330 m3)

Pieces Per Pallet 4

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330115558
