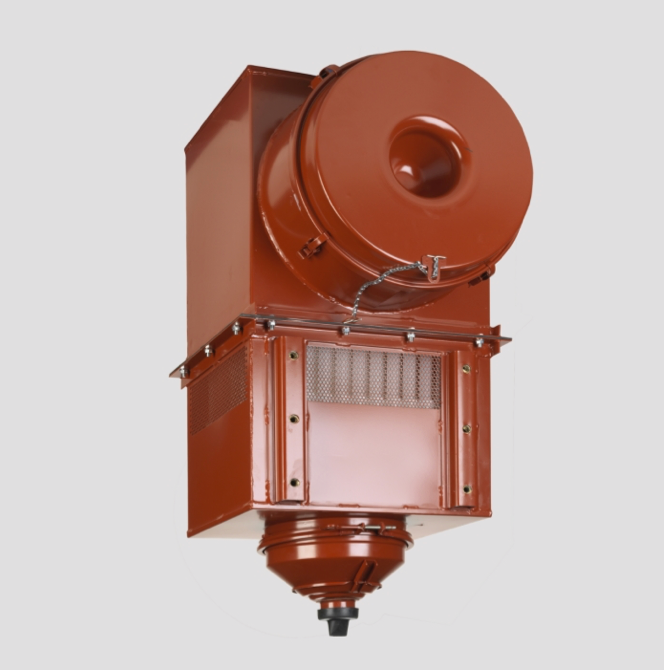

Donaldson Filtration G200086.AIR CLEANER, SSG DONACLONE VERTICAL

Attributes

Overall Length 29.00 inch (736.7 mm)

Body Diameter Maximum 19.68 inch (500 mm)

Outlet Diameter 10.00 inch (254 mm)

Width 20.98 inch (533 mm)

Depth 15.75 inch (400 mm)

Body Length 26.18 inch (665 mm)

Rated Flow LR 1780 cfm (50.4 m³/min)

Rated Flow HR 2059 cfm (58.3 m³/min)

Restriction LR 5.98 inch H2O (14.91 mbar)

Restriction HR 7.99 inch H2O (19.91 mbar)

Style VerticalFamily SRG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 29.92 inch (75.997 cm)

Packaged Width 23.62 inch (59.995 cm)

Packaged Height 53.94 inch (137.008 cm)

Packaged Weight 186.00 lb (84.444 kg)

Packaged Volume 22.06 ft3 (0.618 m3)

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330170892
