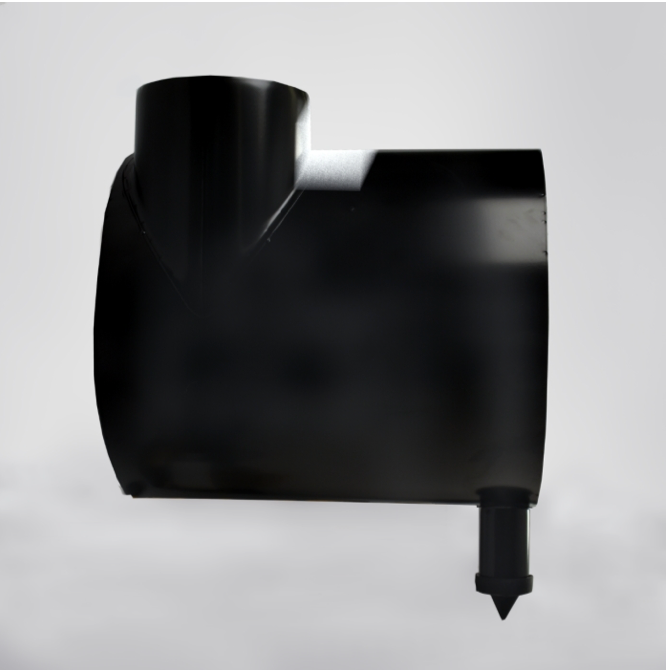

Donaldson Filtration G210007.AIR CLEANER ASSEMBLY

Attributes

Overall Length Inlet Diameter Body Diameter Maximum Outlet Diameter Body Length Rated Flow LR Rated Flow MR Rated Flow HR Restriction LR Restriction MR Restriction HR Product Specifications

G210007

AIR CLEANER ASSEMBLY

27.68 inch (703 mm)

10.00 inch (254 mm)

21.50 inch (546 mm)

10.00 inch (254 mm)

24.13 inch (613 mm)

1448 cfm (41 m³/min)

1695 cfm (48 m³/min)

1914 cfm (54.2 m³/min)

5.98 inch H2O (14.91 mbar)

7.99 inch H2O (19.91 mbar)

10 inch H2O (24.91 mbar)Family FTG

Price Type H

Packaged Dimensions

Packaged Length 32.25 inch (81.915 cm)

Packaged Width 24.40 inch (61.976 cm)

Packaged Height 29.50 inch (74.930 cm)

Packaged Weight 88.02 lb (39.916 kg)

Packaged Volume 13.43 ft3 (0.376 m3)

Pieces Per Pallet 2

Other Information

Country of Origin Germany

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330129890
