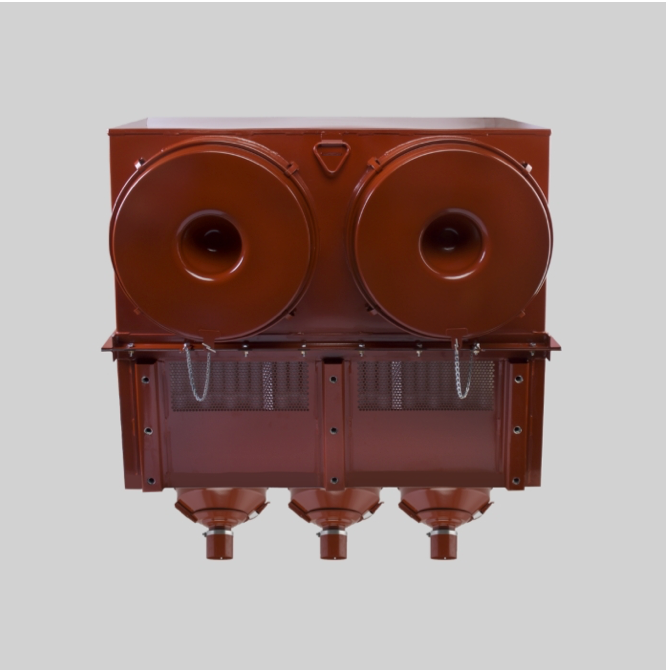

Donaldson Filtration G290055.AIR CLEANER, SSG DONACLONE VERTICAL

Attributes

Body Diameter Maximum 19.68 inch (500 mm)

Outlet Diameter 10.00 inch (254 mm)

Width 42.99 inch (1092 mm)

Depth 23.50 inch (597 mm)

Body Length 31.42 inch (798 mm)

Rated Flow LR 4199 cfm (118.9 m³/min)

Rated Flow HR 4796 cfm (135.8 m³/min)

Restriction LR 5.98 inch H2O (14.91 mbar)

Restriction HR 7.99 inch H2O (19.91 mbar)

Style Vertical

Family SSGBrand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 56.00 inch (142.240 cm)

Packaged Width 45.50 inch (115.570 cm)

Packaged Height 60.00 inch (152.400 cm)

Packaged Weight 474.00 lb (215.196 kg)

Packaged Volume 88.47 ft3 (2.477 m3)

Pieces Per Pallet 1

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330167663

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
