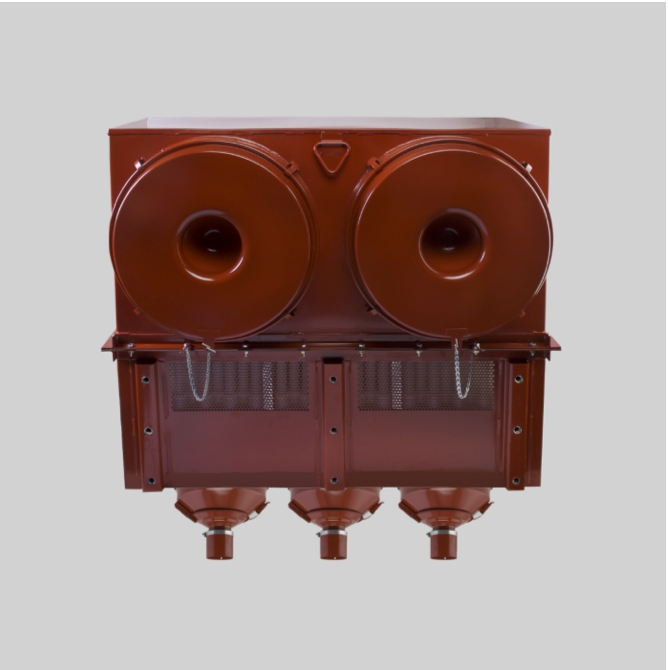

Donaldson Filtration G290057.AIR CLEANER, SSG DONACLONE VERTICAL

Attributes

Overall Length 29.00 inch (736.7 mm)

Body Diameter Maximum 19.67 inch (499.6 mm)

Outlet Diameter 8.00 inch (203.2 mm)

Width 43.00 inch (1092.2 mm)

Depth 15.75 inch (400 mm)

Body Length 25.96 inch (659.4 mm)

Rated Flow LR 2578 cfm (73 m³/min)

Rated Flow HR 2998 cfm (84.9 m³/min)

Restriction LR 5.98 inch H2O (14.91 mbar)

Restriction HR 7.99 inch H2O (19.91 mbar)

Style VerticalFamily SSG

Brand Donaclone™

Price Type H

Packaged Dimensions

Packaged Length 53.75 inch (136.525 cm)

Packaged Width 35.81 inch (90.957 cm)

Packaged Height 64.18 inch (163.017 cm)

Packaged Weight 406.00 lb (184.324 kg)

Packaged Volume 71.49 ft3 (2.002 m3)

Other Information

Country of Origin United States

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330170946
