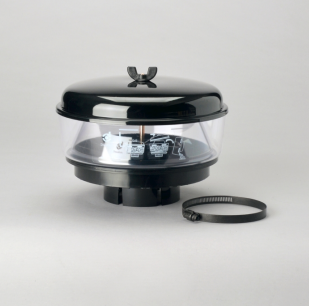

Donaldson Filtration H000823 PRE-CLEANER, FULL VIEW

Why Choose Donaldson Full-View Pre-Cleaners?
Full-View pre-cleaners help extend primary filter life by
removing contamination before it reaches the filter.
• Centrifugal force in bowl separates up to 75% of incoming
dust before it enters an engine air intake system.
• The Full-View pre-cleaner is cost effective, and easy to use.
• Full-View plastic bowl lets operator easily see when service
is needed.
• One-bolt cover retention for easy service.
Attributes
Height 7.68 inch (195 mm)
Body Diameter Maximum 10.62 inch (269.75 mm)
Outlet ID 4.54 inch (115.32 mm)
Efficiency 75
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 339 cfm (9.6 m³/min)
Restriction LR 0.98 inch H2O (2.45 mbar)
Restriction HR 2.99 inch H2O (7.45 mbar)
Price Type H
Packaged Dimensions
Packaged Length 0.92 FT
Packaged Width 0.92 FT
Packaged Height 0.75 FT
Packaged Weight 3.99 lb (1.811 kg)
Packaged Volume 0.63 ft3 (0.018 m3)
Pieces Per Pallet 80
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421190000
UPC Code 742330002810
