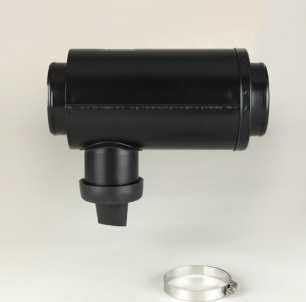

Donaldson Filtration H001474 IN-LINE, HORIZONTAL SEPARATOR

Attributes
Length 8.50 inch (215.9 mm)
Inlet Diameter 4.03 inch (102.36 mm)
Outlet Diameter 4.03 inch (102.36 mm)
Body Diameter Maximum 5.50 inch (139.7 mm)
Rated Flow LR 99 cfm (2.8 m³/min)
Rated Flow HR 399 cfm (11.3 m³/min)
Style Horizontal
Price Type H
Packaged Dimensions
Packaged Length 8.70 inch (22.098 cm)
Packaged Width 8.80 inch (22.352 cm)
Packaged Height 13.10 inch (33.274 cm)
Packaged Weight 4.11 lb (1.864 kg)
Packaged Volume 0.58 ft3 (0.016 m3)
Pieces Per Pallet 3
Other Information
Country of Origin United States
NMFC Code 069100-02
HTS Code 8421190000
UPC Code 742330003237
