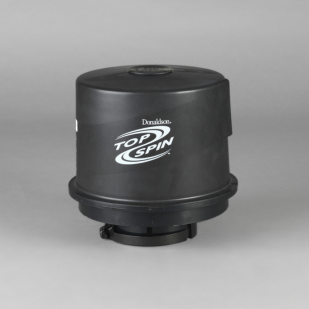

Donaldson Filtration H002427 PRE-CLEANER, TOPSPIN

Why Choose Donaldson TopSpin™ PreCleaners?
Donaldson TopSpin™ pre-cleaners extend primary air filter
life, boost system efficiency, and extend engine life.
• Separates up to 85% of incoming contaminant per ISO
5011/SAE J726.
• Self-cleaning  no maintenance bowl to clean.
• Quick installation  one clamp to tighten.
• Lighter than competitive pre-cleaners.
Attributes
Height 9.39 inch (238.51 mm)
Body Diameter Maximum 9.53 inch (242 mm)
Outlet ID 4.56 inch (115.82 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 201 cfm (5.7 m³/min)
Rated Flow HR 448 cfm (12.7 m³/min)
Restriction LR 0.98 inch H2O (2.45 mbar)
Restriction HR 5 inch H2O (12.45 mbar)
Brand TopSpin™ HD
Price Type H
Packaged Dimensions
Packaged Length 9.90 inch (25.146 cm)
Packaged Width 9.80 inch (24.892 cm)
Packaged Height 10.00 inch (25.400 cm)
Packaged Weight 2.81 lb (1.276 kg)
Packaged Volume 0.56 ft3 (0.016 m3)
Pieces Per Pallet 64
Other Information
Country of Origin United States
NMFC Code 069100-02
HTS Code 8421190000
UPC Code 742330116425
