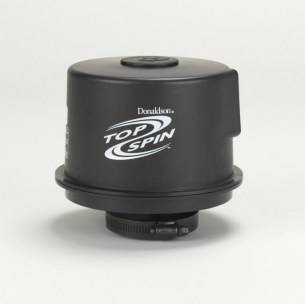

Donaldson Filtration H002436 PRE-CLEANER, TOPSPIN

Why Choose Donaldson TopSpin™ PreCleaners?
Donaldson TopSpin™ pre-cleaners extend primary air filter
life, boost system efficiency, and extend engine life.
• Separates up to 85% of incoming contaminant per ISO
5011/SAE J726.
• Self-cleaning  no maintenance bowl to clean.
• Quick installation  one clamp to tighten.
• Lighter than competitive pre-cleaners.
Attributes
Height 5.78 inch (146.81 mm)
Body Diameter Maximum 6.38 inch (162.1 mm)
Outlet ID 2.53 inch (64.26 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 99 cfm (2.8 m³/min)
Rated Flow HR 201 cfm (5.7 m³/min)
Restriction LR 0.98 inch H2O (2.45 mbar)
Restriction HR 4.76 inch H2O (11.87 mba
Brand TopSpin™ HD
Price Type H
Packaged Dimensions
Packaged Length 6.90 inch (17.526 cm)
Packaged Width 6.80 inch (17.272 cm)
Packaged Height 6.70 inch (17.018 cm)
Packaged Weight 1.23 lb (0.558 kg)
Packaged Volume 0.18 ft3 (0.005 m3)
Pieces Per Pallet 210
Other Information
Country of Origin United States
NMFC Code 156600-04
HTS Code 8421190000
UPC Code 742330126486
