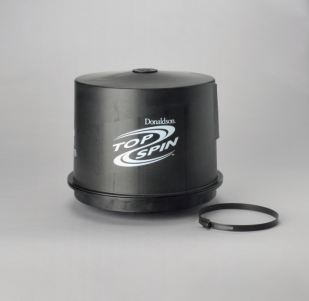

Donaldson Filtration H002439 PRE-CLEANER, TOPSPIN

Why Choose Donaldson TopSpin™ PreCleaners?
Donaldson TopSpin™ pre-cleaners extend primary air filter
life, boost system efficiency, and extend engine life.
• Separates up to 85% of incoming contaminant per ISO
5011/SAE J726.
• Self-cleaning  no maintenance bowl to clean.
• Quick installation  one clamp to tighten.
• Lighter than competitive pre-cleaners.
Attributes
Height 13.44 inch (341.38 mm)
Body Diameter Maximum 15.62 inch (396.75 mm)
Outlet ID 7.03 inch (178.56 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 798 cfm (22.6 m³/min)
Rated Flow HR 1501 cfm (42.5 m³/min)
Restriction LR 2.01 inch H2O (5 mbar)
Restriction HR 8.74 inch H2O (21.77 mbar)
Brand TopSpin™ HD
Price Type H
Packaged Dimensions
Packaged Length 16.10 inch (40.894 cm)
Packaged Width 16.30 inch (41.402 cm)
Packaged Height 15.60 inch (39.624 cm)
Packaged Weight 8.45 lb (3.834 kg)
Packaged Volume 2.37 ft3 (0.066 m3)
Pieces Per Pallet 18
Other Information
Country of Origin United States
NMFC Code 156600-02
HTS Code 8421190000
UPC Code 742330127476
