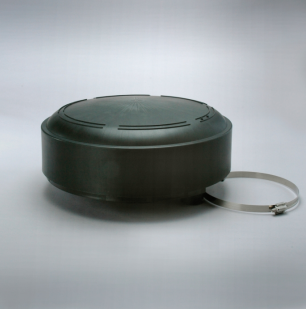

Donaldson Filtration H002704 PRE-CLEANER, STRATACAP

Why Choose Donaldson Strata™ Cap PreCleaners?
Strata Cap pre-cleaners extend primary air filter life, boost
system efficiency and extend engine life in heavy dust
environments.
• The scavenged Strata Cap pre-cleaner removes up to 96%
of incoming contaminant per ISO 5011/SAE J726.
• Offers the highest efficiency rating of any Donaldson selfcontained pre-cleaner.
• Designed for the most demanding heavy dust
environments in the construction and mining industries.
• Easy to use. No moving parts, built in rain cap, no bowl to
clean or empty.
Attributes
Height 8.62 inch (219 mm)
Body Diameter Maximum 17.20 inch (437 mm)
Outlet ID 8.03 inch (204 mm)
Efficiency 96
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 1141 cfm (32.3 m³/min)
Restriction LR 0.98 inch H2O (2.45 mbar)
Restriction HR 5.98 inch H2O (14.91 mbar)
Brand Strata™ Cap
Price Type H
Packaged Dimensions
Packaged Length 17.60 inch (44.704 cm)
Packaged Width 17.80 inch (45.212 cm)
Packaged Height 9.40 inch (23.876 cm)
Packaged Weight 11.44 lb (5.191 kg)
Packaged Volume 1.70 ft3 (0.048 m3)
Pieces Per Pallet 3
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421310000
UPC Code 742330198575
