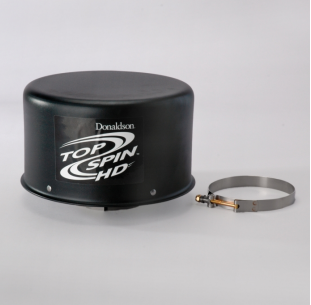

Donaldson Filtration H002854 PRE-CLEANER, TOPSPIN HD

Why Choose Donaldson TopSpin™ HD PreCleaners?
TopSpin™ HD extends primary air filter life, boosts system
efficiency and extends engine life in medium to heavy dust
environments.
• Separates up to 80% of incoming contaminant per ISO
5011.
• All-metal pre-cleaner is a durable solution for punishing
conditions.
• All the interior components are solid stainless steel to
resist dirt, water, heat, and debris encountered in
demanding environments.
• One-piece stainless-steel impeller is the only moving part.
Dual bearings ensure reliable performance.
Attributes
Height 7.56 inch (192 mm)
Body Diameter Maximum 11.18 inch (284 mm)
Outlet ID 5.08 inch (129 mm)
Efficiency 80.00
Efficiency Test Std ISO 5011
Rated Flow LR 353 cfm (10 m³/min)
Rated Flow HR 706 cfm (20 m³/min)
Restriction LR 2.4 inch H2O (5.98 mbar)
Restriction HR 10.79 inch H2O (26.87 mbar)
Brand TopSpin™ HD
Price Type H
Packaged Dimensions
Packaged Length 11.81 inch (29.997 cm)
Packaged Width 11.81 inch (29.997 cm)
Packaged Height 9.06 inch (23.012 cm)
Packaged Weight 7.02 lb (3.187 kg)
Packaged Volume 0.73 ft3 (0.020 m3)
Pieces Per Pallet 60
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421190000
UPC Code 742330969700
