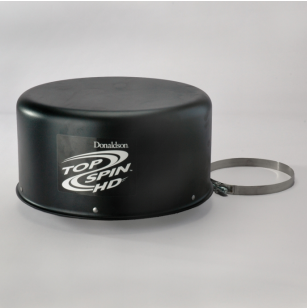

Donaldson Filtration H002856 PRE-CLEANER, TOPSPIN HD

Why Choose Donaldson TopSpin™ HD PreCleaners?
TopSpin™ HD extends primary air filter life, boosts system
efficiency and extends engine life in medium to heavy dust
environments.
• Separates up to 80% of incoming contaminant per ISO
5011.
• All-metal pre-cleaner is a durable solution for punishing
conditions.
• All the interior components are solid stainless steel to
resist dirt, water, heat, and debris encountered in
demanding environments.
• One-piece stainless-steel impeller is the only moving part.
Dual bearings ensure reliable performance.
Attributes
Height 8.39 inch (213 mm)
Body Diameter Maximum 14.76 inch (375 mm)
Outlet ID 7.09 inch (180 mm)
Efficiency 80.00
Efficiency Test Std ISO 5011
Rated Flow LR 742 cfm (21 m³/min)
Rated Flow HR 1342 cfm (38 m³/min)
Restriction LR 2.8 inch H2O (6.96 mbar)
Restriction HR 9.69 inch H2O (24.13 mbar)
Brand TopSpin™ HD
Price Type H
Packaged Dimensions
Packaged Length 14.90 inch (37.846 cm)
Packaged Width 15.00 inch (38.100 cm)
Packaged Height 9.10 inch (23.114 cm)
Packaged Weight 11.56 lb (5.246 kg)
Packaged Volume 1.18 ft3 (0.033 m3)
Pieces Per Pallet 24
Other Information
Country of Origin United States
NMFC Code 069100-04
HTS Code 8421190000
UPC Code 742330969724
