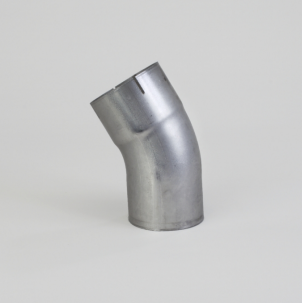

Donaldson Filtration J009632 ELBOW, 30 DEGREE 4 IN (102 MM) OD-ID

Attributes
Wall Thickness 1.65 mm
Outer Diameter 4.02 inch (102 mm)
Inner Diameter 4.02 inch (102 mm)
Leg Length 1 4.02 inch (102 mm)
Leg Length 2 4.02 inch (102 mm)
Radius 5.00 inch (127 mm)
Connection OD-ID
Angle 30 Degrees
Price Type E
Packaged Dimensions
Packaged Length 17.85 inch (45.339 cm)
Packaged Width 8.65 inch (21.970 cm)
Packaged Height 4.40 inch (11.177 cm)
Packaged Weight 1.72 lb (0.781 kg)
Packaged Volume 0.39 ft3 (0.011 m3)
Pieces Per Pallet 51
Other Information
Country of Origin United States
NMFC Code 019160-02
HTS Code 7307995045
UPC Code 742330078976
