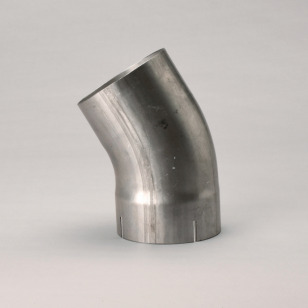

Donaldson Filtration J009633 ELBOW, 30 DEGREE 5 IN (127 MM) OD-ID

Attributes
Outer Diameter 5.00 inch (127 mm)
Inner Diameter 5.00 inch (127 mm)
Leg Length 1 4.02 inch (102 mm)
Leg Length 2 4.02 inch (102 mm)
Radius 5.51 inch (140 mm)
Connection OD-ID
Angle 30 Degrees
Price Type E
Packaged Dimensions
Packaged Length 17.25 inch (43.815 cm)
Packaged Width 9.05 inch (22.988 cm)
Packaged Height 5.30 inch (13.463 cm)
Packaged Weight 2.19 lb (0.994 kg)
Packaged Volume 0.48 ft3 (0.013 m3)
Pieces Per Pallet 72
Other Information
Country of Origin United States
NMFC Code 019160-02
HTS Code 7307995045
UPC Code 742330078983
