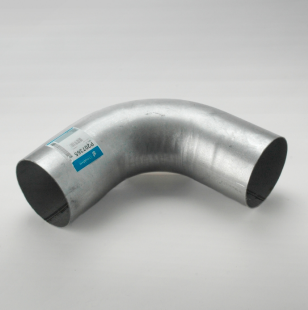

Donaldson Filtration J190013 ELBOW, 90 DEGREE 3 IN (76 MM) OD-OD

Attributes
Wall Thickness 1.65 mm
Outer Diameter 3.00 inch (76.2 mm)
Leg Length 1 14.00 inch (355.6 mm)
Leg Length 2 14.00 inch (355.6 mm)
Radius 5.00 inch (127 mm)
Connection OD-OD
Angle 90 Degrees
Price Type E
Packaged Dimensions
Packaged Length 21.80 inch (55.372 cm)
Packaged Width 11.50 inch (29.210 cm)
Packaged Height 3.00 inch (7.620 cm)
Packaged Weight 3.95 lb (1.793 kg)
Packaged Volume 0.44 ft3 (0.012 m3)
Pieces Per Pallet 27
Other Information
Country of Origin United States
NMFC Code 125850-07
HTS Code 7307995045
UPC Code 742330079362
