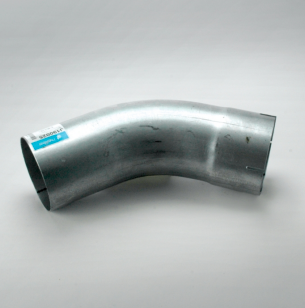

Donaldson Filtration J190027 ELBOW, 45 DEGREE 5 IN (127 MM) OD-ID

Attributes
Outer Diameter 5.00 inch (127 mm)
Inner Diameter 5.01 inch (127.38 mm)
Leg Length 1 15.00 inch (381 mm)
Leg Length 2 15.00 inch (381 mm)
Radius 7.99 inch (203 mm)
Connection OD-ID
Angle 45 Degrees
Price Type E
Packaged Dimensions
Packaged Length 27.50 inch (69.850 cm)
Packaged Width 5.00 inch (12.700 cm)
Packaged Height 15.00 inch (38.100 cm)
Packaged Weight 8.00 lb (3.632 kg)
Packaged Volume 1.19 ft3 (0.033 m3)
Pieces Per Pallet 42
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 7307995045
UPC Code 742330079461
