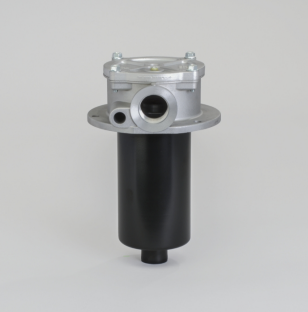

Donaldson Filtration K052053 HYDRAULIC FILTER ASSEMBLY

Why Choose Donaldson Hydraulic Assemblies
• A variety of low, medium and high-pressure filter
assemblies available for a wide range of applications.
• Choose between optional features for a customized
assembly that best fits the needs of your specific application.
• A variety of mix and match system of heads, housings and
media choices to meet your exact requirements.
• Donaldson media delivers better system protection and
superior performance.
Attributes
Outer Diameter 4.33 inch (110 mm)
Inlet Size SAE-20
Outlet Diameter 1.57 inch (40 mm)
Overall Length 12.36 inch (314 mm)
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Series FIK
Price Type H
Packaged Dimensions
Packaged Length 10.80 inch (27.432 cm)
Packaged Width 10.50 inch (26.670 cm)
Packaged Height 15.70 inch (39.878 cm)
Packaged Weight 6.39 lb (2.900 kg)
Packaged Volume 1.03 ft3 (0.029 m3)
Pieces Per Pallet 19
Other Information
Country of Origin Italy
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330182512
