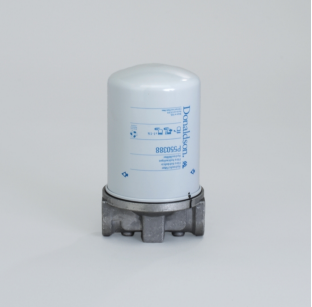

Donaldson Filtration K054080 HYDRAULIC FILTER ASSEMBLY

Why Choose Donaldson Hydraulic Assemblies
• A variety of low, medium and high-pressure filter
assemblies available for a wide range of applications.
• Choose between optional features for a customized
assembly that best fits the needs of your specific application.
• A variety of mix and match system of heads, housings and
media choices to meet your exact requirements.
• Donaldson media delivers better system protection and
superior performance.
Attributes
Outer Diameter 4.86 inch (123.44 mm)
Inlet Size 1 1/4 NPT
Outlet Size 1 1/4 NPT
Overall Length 9.20 inch (233.68 mm)
Bypass Valve Yes
Bypass Valve Setting LR 15 psi (1 bar)
Series SP50/60
Price Type H
Packaged Dimensions
Packaged Length 6.80 inch (17.272 cm)
Packaged Width 6.20 inch (15.748 cm)
Packaged Height 11.20 inch (28.448 cm)
Packaged Weight 4.45 lb (2.020 kg)
Packaged Volume 0.27 ft3 (0.008 m3)
Pieces Per Pallet 44
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330150726
