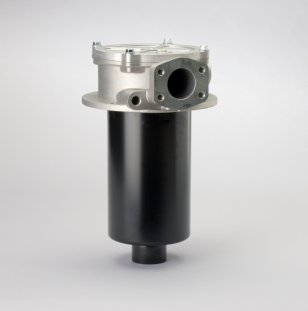

Donaldson Filtration K070249 HYDRAULIC FILTER ASSEMBLY

Why Choose Donaldson Hydraulic Assemblies
• A variety of low, medium and high-pressure filter
assemblies available for a wide range of applications.
• Choose between optional features for a customized
assembly that best fits the needs of your specific application.
• A variety of mix and match system of heads, housings and
media choices to meet your exact requirements.
• Donaldson media delivers better system protection and
superior performance.
Attributes
Inlet Size 2 SAE 4 Bolt Code 61
Outlet Diameter 2.5 inch (63.5 mm)
Overall Length 15.59 inch (396 mm)
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Series FIK
Price Type H
Packaged Dimensions
Packaged Length 10.60 inch (26.924 cm)
Packaged Width 10.60 inch (26.924 cm)
Packaged Height 17.00 inch (43.180 cm)
Packaged Weight 12.36 lb (5.604 kg)
Packaged Volume 1.11 ft3 (0.031 m3)
Pieces Per Pallet 24
Other Information
Country of Origin Italy
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330004197
