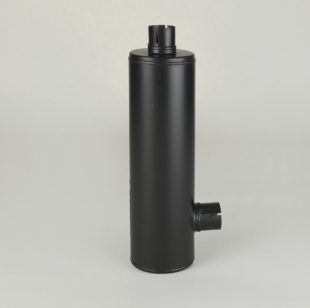

Donaldson Filtration M045193 Muffler, Round Style 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 1.64 inch (41.78 mm)
Outlet Diameter 1.61 inch (41 mm)
Body Diameter Maximum 4.37 inch (111 mm)
Body Length 13.78 inch (350 mm)
Overall Length 15.75 inch (400 mm)
Rated Flow LR 127 cfm (3.6 m³/min)
Rated Flow MR 180 cfm (5.1 m³/min)
Rated Flow HR 219 cfm (6.2 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 12:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 17.2 IN
Packaged Width 6.9 IN
Packaged Height 5.3IN
Packaged Weight 4.4 LB
Packaged Volume 0.364 FT3
Pieces Per Pallet 47
Other Information
Country of Origin United States
NMFC Code 125850-08
HTS Code 8708925000
UPC Code 742330004470
