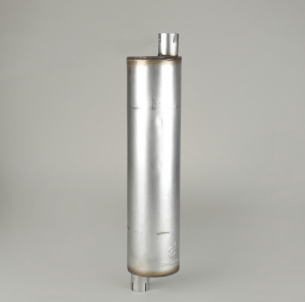

Donaldson Filtration M060232 MUFFLER, ROUND STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 2.02 inch (51.31 mm)
Outlet Diameter 2.02 inch (51.31 mm)
Body Diameter Maximum 5.98 inch (152 mm)
Body Length 24.02 inch (610 mm)
Overall Length 29.00 inch (736.6 mm)
Rated Flow LR 297 cfm (8.4 m³/min)
Rated Flow MR 420 cfm (11.9 m³/min)
Rated Flow HR 516 cfm (14.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 37.00 inch (93.980 cm)
Packaged Width 6.75 inch (17.145 cm)
Packaged Height 6.50 inch (16.510 cm)
Packaged Weight 10.15 lb (4.608 kg)
Packaged Volume 0.94 ft3 (0.026 m3)
Pieces Per Pallet 4
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330004586
