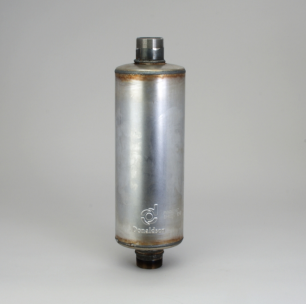

Donaldson Filtration M060247 MUFFLER, ROUND STYLE 1

Attributes
Inlet Diameter 2.36 inch (60 mm)
Outlet Diameter 2.01 inch (51 mm)
Body Diameter Maximum 5.97 inch (151.6 mm)
Body Length 14.50 inch (368.3 mm)
Overall Length 20.00 inch (508 mm)
Rated Flow LR 448 cfm (12.7 m³/min)
Rated Flow MR 632 cfm (17.9 m³/min)
Rated Flow HR 777 cfm (22 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 8 dBA
Attenuation HR 12 dBA
Style Style 1
Packaged Dimensions
Packaged Length 25.10 inch (63.754 cm)
Packaged Width 6.60 inch (16.764 cm)
Packaged Height 6.60 inch (16.764 cm)
Packaged Weight 7.65 lb (3.473 kg)
Packaged Volume 0.63 ft3 (0.018 m3)
Other Information
NMFC Code 125850-02
UPC Code 742330004593
