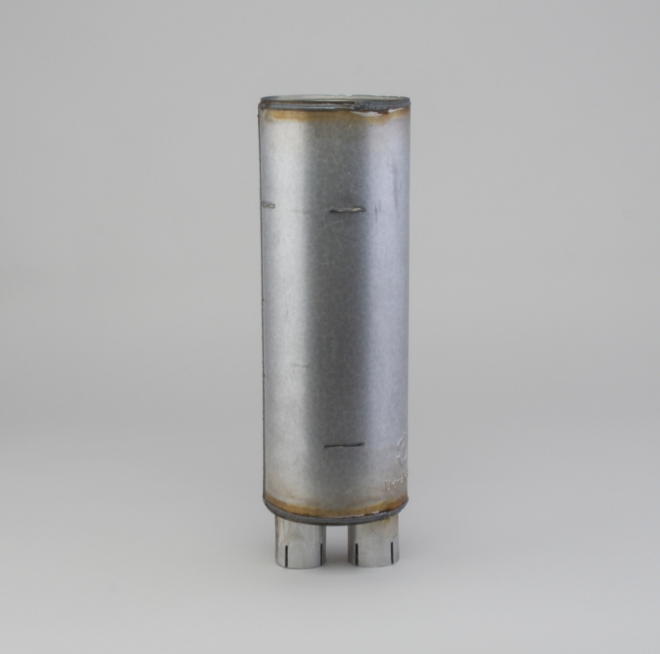

Donaldson Filtration M060250.MUFFLER, ROUND STYLE 5

Attributes

Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Back Pressure High-Range Product Specifications

M060250

MUFFLER, ROUND STYLE 5

2.02 inch (51.31 mm)

2.02 inch (51.31 mm)

5.97 inch (151.6 mm)

16.40 inch (416.6 mm)

19.40 inch (492.8 mm)

297 cfm (8.4 m³/min)

420 cfm (11.9 m³/min)

512 cfm (14.5 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)

2.99 inch Hg (76 mm Hg)Attenuation LR 15 dBA

Attenuation HR 20 dBA

Inlet Clock Position 6:00

Outlet Clock Position 12:00

Style Style 5

Price Type E

Packaged Dimensions

Packaged Length 24.96 inch (63.405 cm)

Packaged Width 6.70 inch (17.018 cm)

Packaged Height 6.60 inch (16.764 cm)

Packaged Weight 8.05 lb (3.655 kg)

Packaged Volume 0.64 ft3 (0.018 m3)

Pieces Per Pallet 37

Other Information

Country of Origin United States

NMFC Code 125850-05

HTS Code 8708925000

UPC Code 742330004616
