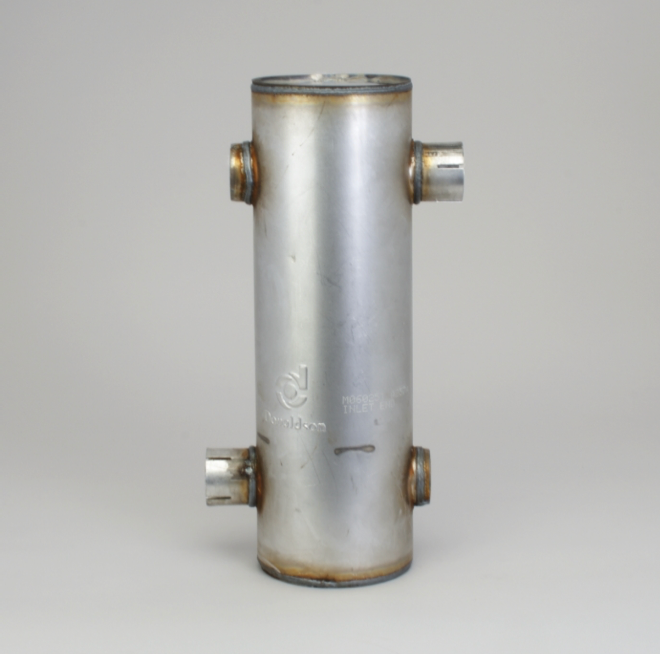

Donaldson Filtration M060251.MUFFLER, ROUND STYLE 6

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M060251

MUFFLER, ROUND STYLE 6

Inlet-Outlet

2.02 inch (51.31 mm)

2.02 inch (51.31 mm)

5.98 inch (152 mm)

11.81 inch (300 mm)

18.81 inch (477.8 mm)

283 cfm (8 m³/min)

399 cfm (11.3 m³/min)

487 cfm (13.8 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.99 inch Hg (76 mm Hg)

Attenuation LR 12 dBA

Attenuation HR 18 dBA

Inlet Clock Position 6:00

Outlet Clock Position 12:00

Style Style 6

Price Type E

Packaged Dimensions

Packaged Length 52.63 inch (133.680 cm)

Packaged Width 10.50 inch (26.670 cm)

Packaged Height 10.50 inch (26.670 cm)

Packaged Weight 22.00 lb (9.988 kg)

Packaged Volume 3.36 ft3 (0.094 m3)

Pieces Per Pallet 23

Other Information

Country of Origin United States

NMFC Code 125850-04

HTS Code 8708925000

UPC Code 742330004623
