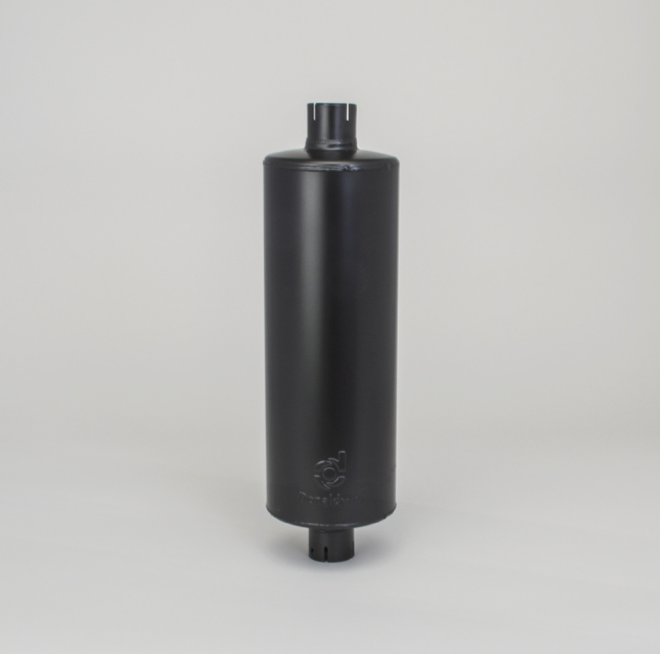

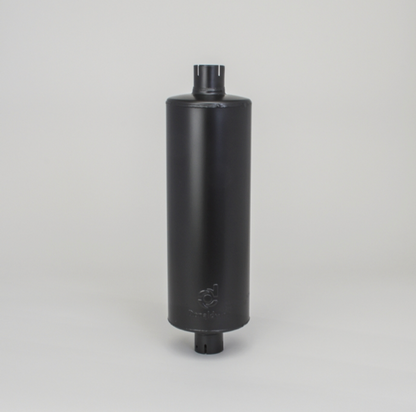

Donaldson Filtration M060479.MUFFLER, ROUND STYLE 1

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M060479

MUFFLER, ROUND STYLE 1

Inlet-Outlet

2.02 inch (51.31 mm)

2.02 inch (51.38 mm)

5.99 inch (152.15 mm)

15.75 inch (400 mm)

21.00 inch (533.4 mm)

283 cfm (8 m³/min)

646 cfm (18.3 m³/min)

392 cfm (11.1 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.99 inch Hg (76 mm Hg)

Attenuation LR 12 dBA

Attenuation HR 18 dBA

Style Style 1

Price Type E

Packaged Dimensions

Packaged Length 24.50 inch (62.230 cm)

Packaged Width 6.50 inch (16.510 cm)

Packaged Height 6.70 inch (17.018 cm)

Packaged Weight 8.40 lb (3.814 kg)

Packaged Volume 0.62 ft3 (0.017 m3)

Pieces Per Pallet 14

Other Information

Country of Origin United States

NMFC Code 125850-02

HTS Code 8708925000

UPC Code 742330113783
