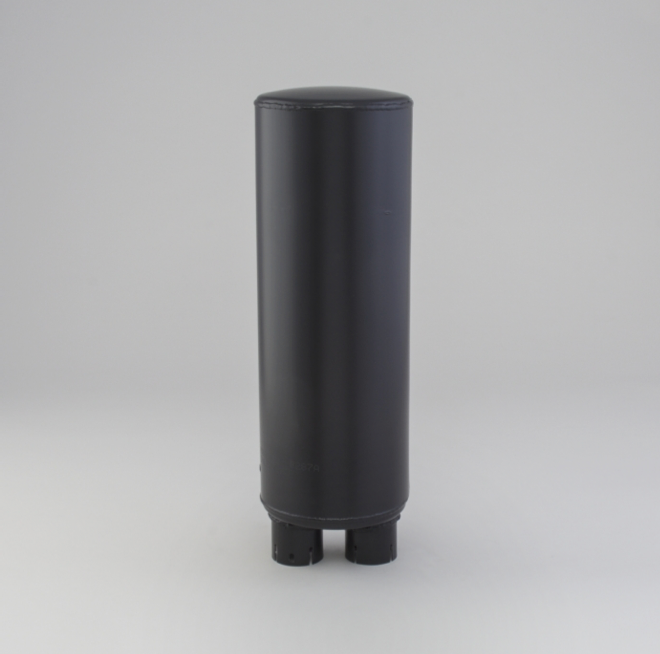

Donaldson Filtration M060482.MUFFLER, ROUND STYLE 5

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M060482

MUFFLER, ROUND STYLE 5

Inlet-Outlet

2.02 inch (51.31 mm)

2.02 inch (51.3 mm)

5.98 inch (152 mm)

15.75 inch (400.1 mm)

19.25 inch (488.95 mm)

283 cfm (8 m³/min)

392 cfm (11.1 m³/min)

392 cfm (11.1 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.99 inch Hg (76 mm Hg)

Attenuation LR 12 dBA

Attenuation HR 18 dBA

Style Style 5

Price Type E

Packaged Dimensions

Packaged Length 21.50 inch (54.610 cm)

Packaged Width 8.00 inch (20.320 cm)

Packaged Height 7.80 inch (19.812 cm)

Packaged Weight 9.30 lb (4.222 kg)

Packaged Volume 0.78 ft3 (0.022 m3)

Pieces Per Pallet 28

Other Information

Country of Origin United States

NMFC Code 125850-04

HTS Code 8708925000

UPC Code 742330113813
