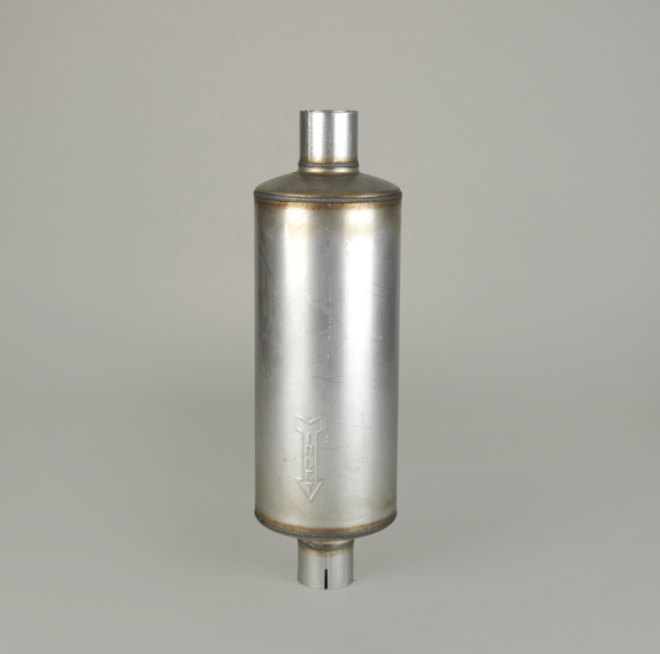

Donaldson Filtration M065071.MUFFLER, ROUND STYLE 1

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M065071

MUFFLER, ROUND STYLE 1

Inlet-Outlet

2.51 inch (63.88 mm)

2.64 inch (67 mm)

6.61 inch (167.89 mm)

15.00 inch (381 mm)

22.00 inch (558.8 mm)

456 cfm (12.9 m³/min)

646 cfm (18.3 m³/min)

791 cfm (22.4 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.99 inch Hg (76 mm Hg)

Attenuation LR 6 dBA

Attenuation HR 12 dBA

Style Style 1

Price Type E

Packaged Dimensions

Packaged Length 25.13 inch (63.818 cm)

Packaged Width 7.70 inch (19.558 cm)

Packaged Height 7.60 inch (19.304 cm)

Packaged Weight 8.45 lb (3.836 kg)

Packaged Volume 0.85 ft3 (0.024 m3)

Pieces Per Pallet 59

Other Information

Country of Origin United States

NMFC Code 125850-10

HTS Code 8708925000

UPC Code 742330004678
