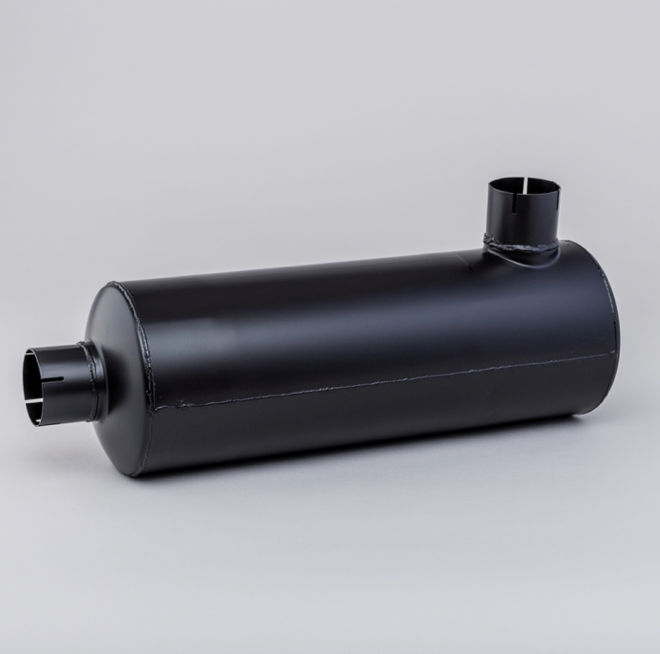

Donaldson Filtration M065140.MUFFLER, ROUND STYLE 3/STYLE 4

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M065140

MUFFLER, ROUND STYLE 3/STYLE 4

Either

2.51 inch (63.88 mm)

2.51 inch (63.88 mm)

6.61 inch (167.89 mm)

17.75 inch (450.85 mm)

22.04 inch (559.82 mm)

441 cfm (12.5 m³/min)

611 cfm (17.3 m³/min)

611 cfm (17.3 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.01 inch Hg (51 mm Hg)

Attenuation LR 12 dBA

Attenuation HR 18 dBA

Inlet Clock Position 6:00

Style Style 3/Style 4

Price Type E

Packaged Dimensions

Packaged Length 23.50 inch (59.690 cm)

Packaged Width 10.70 inch (27.178 cm)

Packaged Height 8.10 inch (20.574 cm)

Packaged Weight 10.50 lb (4.767 kg)

Packaged Volume 1.18 ft3 (0.033 m3)

Pieces Per Pallet 40

Other Information

Country of Origin United States

NMFC Code 125850-03

HTS Code 8708925000

UPC Code 742330113851
