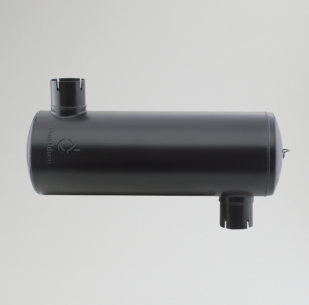

Donaldson Filtration M065142 MUFFLER, ROUND STYLE 6

 Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 2.51 inch (63.88 mm)
Outlet Diameter 2.51 inch (63.88 mm)
Body Diameter Maximum 6.61 inch (167.9 mm)
Body Length 17.50 inch (444.5 mm)
Overall Length 19.84 inch (503.9 mm)
Rated Flow LR 441 cfm (12.5 m³/min)
Rated Flow MR 611 cfm (17.3 m³/min)
Rated Flow HR 611 cfm (17.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 6
Price Type E
Packaged Dimensions
Packaged Length 23.00 inch (58.420 cm)
Packaged Width 12.60 inch (32.004 cm)
Packaged Height 7.30 inch (18.542 cm)
Packaged Weight 10.40 lb (4.719 kg)
Packaged Volume 1.22 ft3 (0.034 m3)
Pieces Per Pallet 36
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330161159
