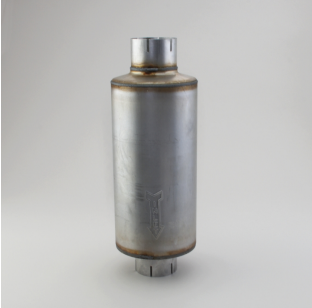

Donaldson Filtration M070028 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.45 inch (87.63 mm)
Outlet Diameter 3.45 inch (87.63 mm)
Body Diameter Maximum 7.01 inch (178 mm)
Body Length 13.75 inch (349.25 mm)
Overall Length 19.75 inch (501.65 mm)
Rated Flow LR 720 cfm (20.4 m³/min)
Rated Flow MR 1017 cfm (28.8 m³/min)
Rated Flow HR 1236 cfm (35 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 10 dBA
Attenuation HR 15 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 22.90 inch (58.166 cm)
Packaged Width 7.70 inch (19.558 cm)
Packaged Height 7.50 inch (19.050 cm)
Packaged Weight 9.74 lb (4.420 kg)
Packaged Volume 0.77 ft3 (0.021 m3)
Pieces Per Pallet 60
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330004722
