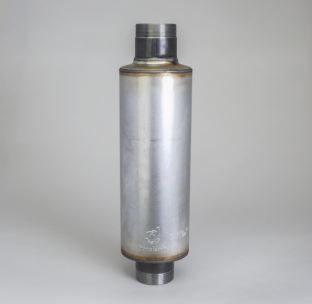

Donaldson Filtration M070050 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.50 inch (89 mm)
Outlet Diameter 3.50 inch (89 mm)
Body Diameter Maximum 6.97 inch (177 mm)
Body Length 18.12 inch (460.25 mm)
Overall Length 25.62 inch (650.75 mm)
Rated Flow LR 812 cfm (23 m³/min)
Rated Flow MR 1148 cfm (32.5 m³/min)
Rated Flow HR 1406 cfm (39.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 10 dBA
Attenuation HR 15 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 27.20 inch (69.088 cm)
Packaged Width 7.70 inch (19.558 cm)
Packaged Height 7.70 inch (19.558 cm)
Packaged Weight 16.25 lb (7.378 kg)
Packaged Volume 0.93 ft3 (0.026 m3)
Pieces Per Pallet 8
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330004753
