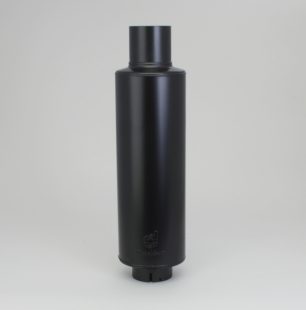

Donaldson Filtration M070325 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.03 inch (102.39 mm)
Outlet Diameter 4.14 inch (105.23 mm)
Body Diameter Maximum 7.01 inch (178 mm)
Body Length 18.75 inch (476.25 mm)
Overall Length 25.50 inch (647.7 mm)
Rated Flow LR 1088 cfm (30.8 m³/min)
Rated Flow MR 1519 cfm (43 m³/min)
Rated Flow HR 1829 cfm (51.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 10 dBA
Attenuation HR 14 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 27.25 inch (69.214 cm)
Packaged Width 7.69 inch (19.532 cm)
Packaged Height 7.75 inch (19.684 cm)
Packaged Weight 12.05 lb (5.471 kg)
Packaged Volume 0.94 ft3 (0.026 m3)
Pieces Per Pallet 36
Other Information
Country of Origin United States
NMFC Code 125850-09
HTS Code 8708925000
UPC Code 742330174449
