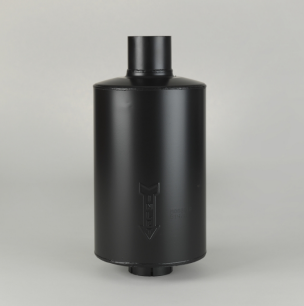

Donaldson Filtration M080018 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.13 inch (79.5 mm)
Body Diameter Maximum 7.99 inch (203 mm)
Body Length 12.19 inch (309.6 mm)
Overall Length 17.00 inch (431.8 mm)
Rated Flow LR 480 cfm (13.6 m³/min)
Rated Flow MR 682 cfm (19.3 m³/min)
Rated Flow HR 833 cfm (23.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 10 dBA
Attenuation HR 15 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 19.30 inch (49.022 cm)
Packaged Width 8.40 inch (21.336 cm)
Packaged Height 8.30 inch (21.082 cm)
Packaged Weight 8.76 lb (3.975 kg)
Packaged Volume 0.78 ft3 (0.022 m3)
Pieces Per Pallet 50
Other Information
Country of Origin United States
NMFC Code 125850-09
HTS Code 8708925000
UPC Code 742330004845
