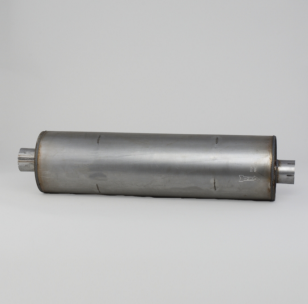

Donaldson Filtration M085023 MUFFLER, ROUND STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 30.75 inch (781 mm)
Overall Length 36.25 inch (920.75 mm)
Rated Flow LR 632 cfm (17.9 m³/min)
Rated Flow MR 893 cfm (25.3 m³/min)
Rated Flow HR 1095 cfm (31 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 17 dBA
Attenuation HR 22 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 39.50 inch (100.330 cm)
Packaged Width 9.88 inch (25.083 cm)
Packaged Height 8.88 inch (22.543 cm)
Packaged Weight 20.25 lb (9.194 kg)
Packaged Volume 2.00 ft3 (0.056 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330004883
