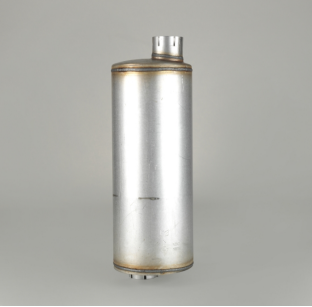

Donaldson Filtration M085056 MUFFLER, ROUND STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 20.25 inch (514.4 mm)
Overall Length 25.00 inch (635 mm)
Rated Flow LR 632 cfm (17.9 m³/min)
Rated Flow MR 893 cfm (25.3 m³/min)
Rated Flow HR 1095 cfm (31 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 29.00 inch (73.660 cm)
Packaged Width 8.75 inch (22.225 cm)
Packaged Height 8.75 inch (22.225 cm)
Packaged Weight 15.13 lb (6.869 kg)
Packaged Volume 1.28 ft3 (0.036 m3)
Pieces Per Pallet 25
Other Information
Country of Origin United States
NMFC Code 125850-05
HTS Code 8708925000
UPC Code 742330004890
