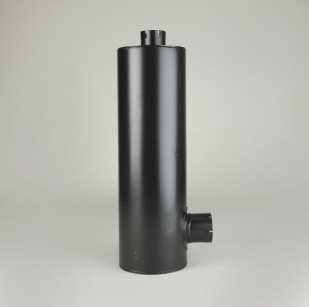

Donaldson Filtration M085084 MUFFLER, ROUND STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.50 inch (89 mm)
Outlet Diameter 3.51 inch (89.28 mm)
Body Diameter Maximum 8.47 inch (215.14 mm)
Body Length 27.00 inch (685.8 mm)
Overall Length 29.50 inch (749.3 mm)
Rated Flow LR 463 cfm (13.1 m³/min)
Rated Flow MR 653 cfm (18.5 m³/min)
Rated Flow HR 802 cfm (22.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 3:00
Outlet Clock Position 6:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 31.25 inch (79.375 cm)
Packaged Width 11.94 inch (30.328 cm)
Packaged Height 8.81 inch (22.377 cm)
Packaged Weight 21.35 lb (9.693 kg)
Packaged Volume 1.90 ft3 (0.053 m3)
Pieces Per Pallet 35
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330004920
