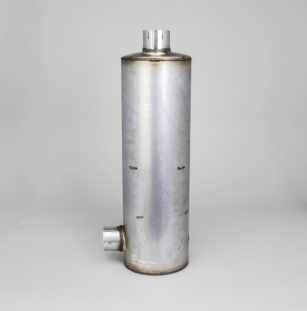

Donaldson Filtration M085090 MUFFLER, ROUND STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.6 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 26.25 inch (666.8 mm)
Overall Length 29.50 inch (749.3 mm)
Rated Flow LR 466 cfm (13.2 m³/min)
Rated Flow MR 657 cfm (18.6 m³/min)
Rated Flow HR 802 cfm (22.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 3:00
Outlet Clock Position 6:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 31.00 inch (78.739 cm)
Packaged Width 11.75 inch (29.846 cm)
Packaged Height 8.75 inch (22.226 cm)
Packaged Weight 20.60 lb (9.352 kg)
Packaged Volume 1.84 ft3 (0.052 m3)
Pieces Per Pallet 20
Other Information
Country of Origin United States
NMFC Code 125850-05
HTS Code 8708925000
UPC Code 742330004937
