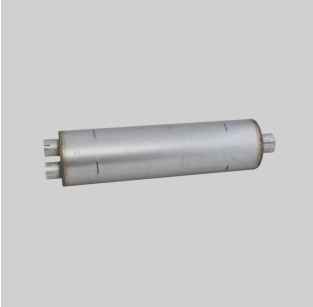

Donaldson Filtration M085189 MUFFLER, ROUND STYLE 2A

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 2.51 inch (63.88 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.47 inch (215.14 mm)
Body Length 30.75 inch (781.1 mm)
Overall Length 36.25 inch (920.75 mm)
Rated Flow LR 505 cfm (14.3 m³/min)
Rated Flow MR 713 cfm (20.2 m³/min)
Rated Flow HR 876 cfm (24.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00(2)
Outlet Clock Position 12:00
Style Style 2A
Price Type E
Packaged Dimensions
Packaged Length 38.63 inch (98.108 cm)
Packaged Width 9.00 inch (22.860 cm)
Packaged Height 9.00 inch (22.860 cm)
Packaged Weight 20.00 lb (9.080 kg)
Packaged Volume 1.81 ft3 (0.051 m3)
Pieces Per Pallet 25
Other Information
Country of Origin United States
NMFC Code 125850-08
HTS Code 8708925000
UPC Code 742330004975
