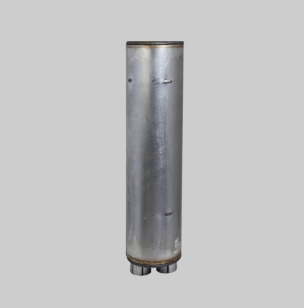

Donaldson Filtration M085207 MUFFLER, ROUND STYLE 5

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 22.00 inch (558.8 mm)
Overall Length 23.50 inch (596.9 mm)
Rated Flow LR 629 cfm (17.8 m³/min)
Rated Flow MR 886 cfm (25.1 m³/min)
Rated Flow HR 1088 cfm (30.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 5
Price Type E
Packaged Dimensions
Packaged Length 2.42 FT
Packaged Width 0.73 FT
Packaged Height 0.75 FT
Packaged Weight 16.57 lb (7.523 kg)
Packaged Volume 1.33 ft3 (0.037 m3)
Pieces Per Pallet 25
Other Information
Country of Origin United States
NMFC Code 125850-05
HTS Code 8708925000
UPC Code 742330004999
