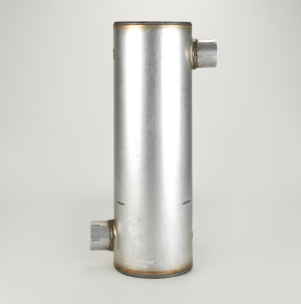

Donaldson Filtration M085208 MUFFLER, ROUND STYLE 6

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 20.00 inch (508 mm)
Overall Length 27.00 inch (685.8 mm)
Rated Flow LR 600 cfm (17 m³/min)
Rated Flow MR 650 cfm (18.4 m³/min)
Rated Flow HR 1042 cfm (29.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 6
Price Type E
Packaged Dimensions
Packaged Length 30.75 inch (78.105 cm)
Packaged Width 17.00 inch (43.181 cm)
Packaged Height 9.00 inch (22.860 cm)
Packaged Weight 17.45 lb (7.922 kg)
Packaged Volume 2.72 ft3 (0.076 m3)
Pieces Per Pallet 15
Other Information
Country of Origin United States
NMFC Code 125850-04
HTS Code 8708925000
UPC Code 742330005002
