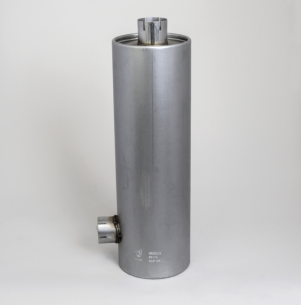

Donaldson Filtration M085226 MUFFLER, ROUND STYLE 3 WRAPPED

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.78 inch (223 mm)
Body Length 27.12 inch (688.85 mm)
Overall Length 29.56 inch (750.82 mm)
Rated Flow LR 466 cfm (13.2 m³/min)
Rated Flow MR 657 cfm (18.6 m³/min)
Rated Flow HR 802 cfm (22.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 3:00
Outlet Clock Position 6:00
Type Wrapped
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 30.88 inch (78.423 cm)
Packaged Width 11.75 inch (29.845 cm)
Packaged Height 9.50 inch (24.130 cm)
Packaged Weight 29.60 lb (13.438 kg)
Packaged Volume 1.99 ft3 (0.056 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330115923
