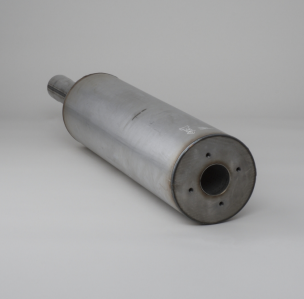

Donaldson Filtration M085293 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 2.89 inch (73.41 mm)
Outlet Diameter 3.16 inch (80.26 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 31.62 inch (803.15 mm)
Overall Length 46.25 inch (1174.75 mm)
Rated Flow LR 629 cfm (17.8 m³/min)
Rated Flow MR 89046 cfm (2521.5 m³/min)
Rated Flow HR 1091 cfm (30.9 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 49.50 inch (125.730 cm)
Packaged Width 9.25 inch (23.495 cm)
Packaged Height 8.25 inch (20.955 cm)
Packaged Weight 28.75 lb (13.053 kg)
Packaged Volume 2.19 ft3 (0.061 m3)
Pieces Per Pallet 6
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005026
