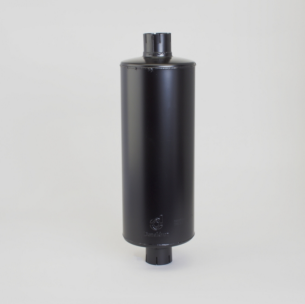

Donaldson Filtration M085407 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 19.75 inch (501.6 mm)
Overall Length 26.50 inch (673 mm)
Rated Flow LR 636 cfm (18 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 883 cfm (25 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 28.75 inch (73.025 cm)
Packaged Width 9.38 inch (23.813 cm)
Packaged Height 9.50 inch (24.130 cm)
Packaged Weight 15.98 lb (7.253 kg)
Packaged Volume 1.48 ft3 (0.041 m3)
Pieces Per Pallet 24
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330113882
