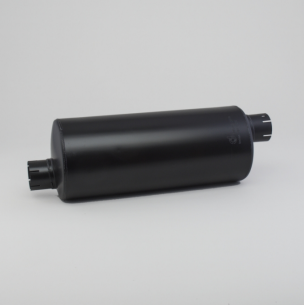

Donaldson Filtration M085408 MUFFLER, ROUND STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 19.75 inch (501.6 mm)
Overall Length 26.50 inch (673 mm)
Rated Flow LR 636 cfm (18 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 883 cfm (25 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.01 inch Hg (51 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 29.00 inch (73.660 cm)
Packaged Width 9.60 inch (24.384 cm)
Packaged Height 9.60 inch (24.384 cm)
Packaged Weight 15.90 lb (7.219 kg)
Packaged Volume 1.55 ft3 (0.043 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330113899
